Brisbane sits on a mix of weathered phyllite, schist, and deep alluvial deposits along the Brisbane River. The subtropical climate drives intense wet-season rainfall, which saturates these profiles and alters their dynamic stiffness. For base isolation seismic design, the critical input is the soil shear-wave velocity profile (VS30) and the site classification under AS 1170.4. We run MASW arrays and downhole seismic tests to map these values across your lot. Without measured VS30, the code forces a default softer site class — that inflates foundation costs unnecessarily. We also correlate SPT blow counts with MASW-VS30 results to validate the profile at depth. This gives the structural engineer a defensible soil model for the isolation layer design.
A measured VS30 profile can shift a site from Class Ce to Class Cc under AS 1170.4, reducing the design base shear by 15%.
Scope of work
We see projects where the isolation system assumes a uniform stiff stratum at 12 m depth. In Brisbane, the phyllite weathering profile rarely behaves that way. The rock quality designation (RQD) drops sharply within 3 m of the surface. Our lab measures the small-strain shear modulus (G0) using bender element tests on undisturbed samples. This modulus controls the isolation bearing stiffness selection. We also run resonant column tests to capture modulus reduction curves (G/G0 vs shear strain) for the weathered zone. For a recent 15-story tower in Kangaroo Point, we combined VS30 data with placa-de-carga results to calibrate the subgrade reaction modulus. The designer then tuned the lead-rubber bearings to the actual site response spectrum, not a generic code spectrum.

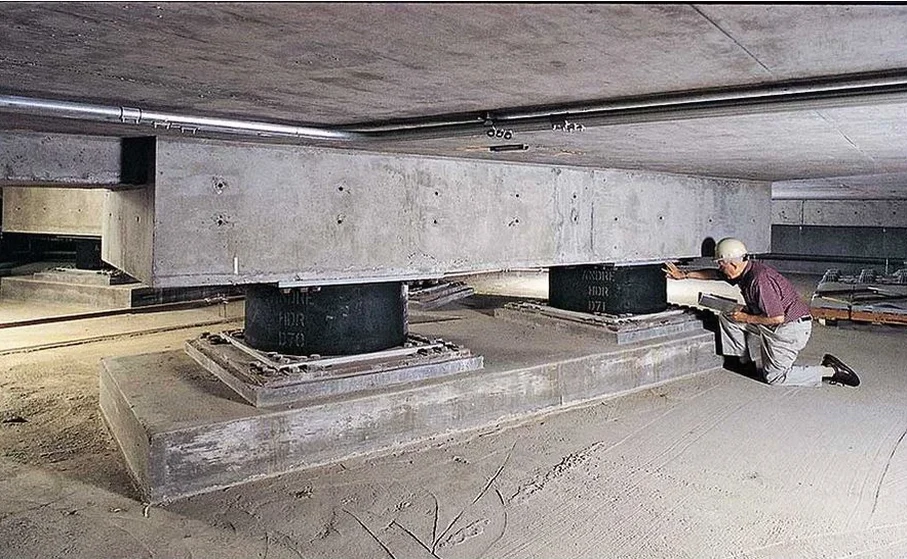

Technical reference image — Brisbane
Area-specific notes
A seismic gap that closes during a design earthquake is a common failure mode. In Brisbane, the risk rises when the isolation system sits on fill or colluvium that compresses unevenly. We install inclinometers and settlement markers before the bearing installation. These instruments track differential movement during construction. If the gap closes by more than 10 mm, the bearings can lock and transfer shear directly to the superstructure. Our monitoring protocol follows AS 4678 for earth-retaining structures and includes weekly readouts during the bearing installation phase. We flag any movement exceeding 5 mm within 24 hours.
Multi-channel analysis of surface waves to map shear-wave velocity with depth. We deploy 24-geophone arrays and invert the dispersion curve to produce a 1D VS30 profile compliant with AS 1170.4 site classification.
02
Resonant Column & Bender Element Tests
Laboratory dynamic testing on undisturbed tube samples. Measures G0, modulus reduction G/G0, and damping ratio at strain levels from 0.0001% to 1%. Essential for isolation bearing stiffness calibration.
03
Downhole Seismic Logging
Borehole-based P-wave and S-wave velocity measurement using a three-component geophone clamped at 1 m intervals. Provides direct VS profile in weathered rock profiles typical of Brisbane.
04
Site Response Spectrum Analysis
One-dimensional equivalent-linear site response analysis using DEEPSOIL or STRATA. We input measured VS profiles and strain-dependent modulus curves to generate a site-specific design spectrum for the isolation system.
Standards used
AS 1170.4:2007 (Earthquake actions in Australia), AS 1726:2017 (Geotechnical site investigations), AS 4100:2018 (Steel structures – isolation system connections), AS 4678:2002 (Earth-retaining structures)
Frequently asked questions
What is the typical VS30 range for Brisbane sites?
Brisbane sites range from Class D (VS30 180–360 m/s) in deep alluvial fills along the river to Class B (VS30 760+ m/s) on fresh phyllite in the western suburbs. Most inner-city sites fall in Class Ce (360–600 m/s). We recommend a MASW survey for every project to confirm the code classification.
How does base isolation change the geotechnical investigation scope?
The investigation must extend deeper than for a conventional fixed-base building. We typically drill to 30 m or to rock, whichever comes first. Dynamic tests (VS, resonant column) are mandatory. We also measure the natural period of the soil column to check for resonance with the isolation period.
What is the cost range for a complete base isolation geotechnical investigation in Brisbane?
A full investigation including MASW, two boreholes with SPT, resonant column tests, and site response analysis ranges between AU$7.450 and AU$11.720. The final cost depends on the number of boreholes and the depth required to reach stiff stratum.
Can I use a default site class from AS 1170.4 instead of measured VS30?
Yes, but the code default site class is often one class softer than the actual site. This increases the design base shear by 15% to 30% and may force a larger isolation system.
