A common mistake we see on Brisbane projects is relying solely on Standard Penetration Test correlations to size shallow foundations without a direct stiffness measurement. In the alluvial clays of the Brisbane River corridor and the residual soils of the western suburbs, SPT N-values alone can mispredict settlement by a factor of two or more. That is where a plate load test (PLT) becomes essential. We load a rigid steel plate against the in-situ soil or compacted fill and record the load-settlement curve to obtain the modulus of subgrade reaction (k) or the ultimate bearing capacity. Before mobilising the reaction frame, we always run a [granulometria](granulometria) on the soil to check for oversize particles that could affect the seating of the plate, and we review the [estudio de mecánica de suelos](estudio-mecanica-suelos) to confirm the test depth matches the foundation bearing stratum.
A single plate load test can reveal whether the design modulus assumed in the structural model is off by 50 % or more.
Scope of work
Brisbane's geology is dominated by the Neranleigh-Fernvale beds — meta-sedimentary rocks with highly variable weathering profiles — and Quaternary alluvium in the floodplains. A plate load test in Brisbane must account for the fact that the upper one to two metres often contains desiccated crusts over soft clays, especially in suburbs like Indooroopilly and Milton.
We use circular plates 300 mm, 450 mm or 600 mm in diameter per AS 1289.6.3.2.
The reaction is provided by a calibrated hydraulic jack bearing against a kentledge or anchored beam.
Displacements are measured with two dial gauges or LVDTs on opposite sides of the plate.
The test is performed at natural moisture content or soaked conditions depending on the design scenario. Each plate load test in Brisbane we run is supervised by a NATA-accredited technician, and the results are reported with the full load-settlement curve and the derived modulus values.

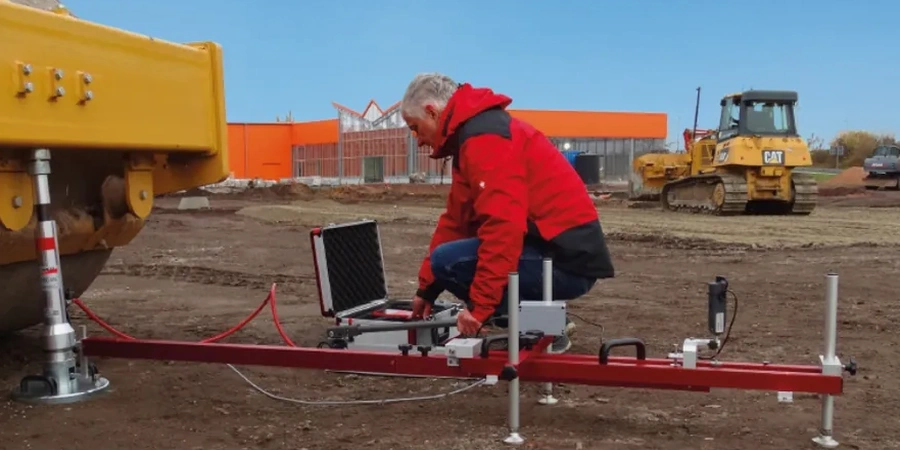

Technical reference image — Brisbane
Area-specific notes
Consider two Brisbane suburbs: Eight Mile Plains, where the residual soils from the Neranleigh-Fernvale beds can exhibit moduli above 80 MPa, and the Breakfast Creek area, where soft Holocene clays rarely exceed 20 MPa. If a designer applies the same subgrade modulus to both sites without a plate load test in Brisbane, the slab in Breakfast Creek could settle three times more than predicted. The risk is not just differential settlement — it is the cost of retrofitting under-slab services or grinding a slab that has warped. Our plate load testing program provides the site-specific stiffness data that the structural engineer needs to finalise the foundation design with confidence.
Modulus of subgrade reaction (k), bearing capacity qu
Settlement measurement resolution
0.01 mm (LVDT or dial gauge)
Loading increments
8 to 10 equal increments up to design load
Test duration per cycle
Approx. 3–5 hours including setup and recovery
Applicable soil types
Cohesive and granular soils, compacted fills
Reporting standard
AS 1726-2017 geotechnical site investigation
Linked services
01
Modulus of subgrade reaction (k) determination for slab design
For warehouse slabs, hardstands and industrial floors in Brisbane, we run the PLT at the proposed slab subgrade level and report the k-value at 0.25 mm, 0.5 mm and 1.25 mm settlement. This allows the pavement engineer to input accurate spring stiffnesses into the finite element model.
02
Bearing capacity verification for shallow footings
On sites where the founding stratum is a cemented sand or a stiff clay, the plate load test gives the ultimate bearing capacity and the load-settlement behaviour up to 20 % of the plate diameter. We correlate the results with the SPT N-values from the boreholes to provide a design recommendation that complies with AS 2870.
Standards used
AS 1289.6.3.2 – Determination of bearing capacity of soil by plate loading test, AS 1726-2017 – Geotechnical site investigations, AS 1289 – Standard test method for nonrepetitive static plate load tests
Frequently asked questions
What is the difference between a plate load test and a CBR test?
A plate load test measures the in-situ bearing capacity and modulus of subgrade reaction under static loading, while a CBR test is a laboratory penetration test used primarily for pavement design. The PLT gives a direct stiffness value for the actual soil at the site; the CBR is an index test performed on remoulded or undisturbed samples under controlled moisture conditions.
How much does a plate load test in Brisbane cost?
The typical cost for a standard plate load test in Brisbane ranges between AU$1,310 and AU$1,830 depending on the plate size, the required reaction load, and site access conditions. This includes mobilisation, testing, and a NATA-accredited report with the load-settlement curve and derived moduli.
What soil conditions in Brisbane require a plate load test rather than SPT correlations?
Brisbane's residual soils from the Neranleigh-Fernvale beds often exhibit a cemented structure that SPT N-values overestimate. In the alluvial clays of the Brisbane River corridor, the SPT can underestimate stiffness due to rod friction. A plate load test is recommended when the design relies on a specific modulus value for slab or footing design, or when previous SPT correlations have proven unreliable on adjacent sites.
Can the plate load test be performed on compacted fill prior to slab construction?
Yes, that is one of the most common applications in Brisbane. We perform the PLT on the finished fill surface at the design moisture content. The test confirms whether the achieved compaction and the in-situ modulus meet the specification. If the modulus is too low, the fill can be reworked or a [geotechnical improvement such as preloading](precarga) can be applied before the slab is poured.
