On a recent project near the Brisbane River, we helped design a 22-metre-deep diaphragm wall for a basement excavation. The site had alluvial silts overlying the Neranleigh-Fernvale formation, a typical sequence in inner Brisbane. Before finalising the panel layout, we ran a calicatas exploratorias campaign to verify soil layering and a presurometro test to obtain in-situ stiffness values. The wall also needed to cut through a perched water table, so we coordinated with the grouting team to seal the toe. That combination of field data and local knowledge is what makes diaphragm wall design in Brisbane technically demanding.
Brisbane's alluvial sequence over weathered rock demands panel depths that often exceed 20 metres to reach competent bearing.
Scope of work
Ground conditions shift markedly between the CBD and suburbs like Eight Mile Plains. In the city, you get stiff clays and occasional basalt boulders; out east, you hit the residual soils of the Brisbane Tuff. That variation affects everything from panel depth to concrete mix. For a recent wall in Fortitude Valley, we used a placa de carga to verify modulus values against AS 4678, and a suelos expansivos assessment to confirm there was no swelling risk at the formation level. The design also had to account for adjacent footings and a sewer tunnel — something that's common in Brisbane's dense urban fabric.

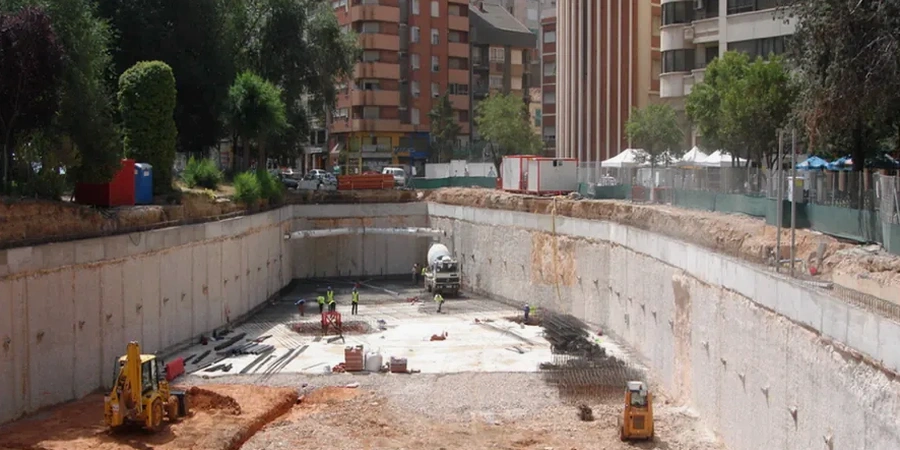

Technical reference image — Brisbane
Area-specific notes
AS 4678:2002 sets the design framework for earth-retaining structures in Australia, and for diaphragm walls in Brisbane the key risk is hydrostatic pressure during excavation. A heavy rainfall event — and Brisbane gets more than 1,000 mm annually — can raise the water table 2–3 metres in hours. If the tremie concreting is delayed or the panel joints leak, you get ground loss. We mitigate that with continuous slurry monitoring and a strict construction sequence tied to the local weather forecast.
We determine optimal panel widths, depths, and trench stability parameters based on local soil profiles and groundwater levels.
02
Structural design and reinforcement detailing
We produce cage schedules, joint details, and load take-offs compliant with AS 4678 and the National Construction Code.
This service complements our laboratory testing work for a complete project analysis.
Standards used
AS 4678:2002 — Earth-retaining structures, AS 1726:2017 — Geotechnical site investigations, AS/NZS 1170.2:2021 — Wind actions (for exposed walls)
Frequently asked questions
What is the typical depth of a diaphragm wall in Brisbane?
Most walls we design in Brisbane range from 15 to 30 metres deep. The depth is driven by the need to socket into the Neranleigh-Fernvale formation or similar competent rock, which can sit 20–25 metres below surface in the inner suburbs.
How do Brisbane's groundwater conditions affect diaphragm wall design?
The water table is often 2–4 metres below ground in the Brisbane River corridor. We design for a hydrostatic head that can rise 2–3 metres during the wet season, and we specify a tremie seal and continuous slurry monitoring to prevent collapse.
What is the difference between a diaphragm wall and a secant pile wall?
A diaphragm wall is a reinforced concrete panel wall built in a trench under slurry; a secant pile wall is formed by overlapping drilled piles. In Brisbane, diaphragm walls are preferred where stiffness and watertightness are critical, such as deep basements adjacent to existing structures.
How much does diaphragm wall design cost in Brisbane?
For a typical basement project, the geotechnical and structural design fee ranges between AU$2.980 and AU$12.060 depending on wall length, depth, and complexity. Site-specific factors like boulder obstructions or high groundwater can increase the lower end.
