Brisbane sits on a mix of alluvial floodplain clays and residual soils from the Neranleigh-Fernvale beds, which means any containment system—whether for a landfill cell, a stormwater pond, or a mining leach pad—requires a geomembrane specification that accounts for both differential settlement and potential puncture from angular gravels. We see too many projects where a generic 1.5 mm HDPE sheet is ordered without checking the subgrade condition or the chemical exposure. Our team writes a geomembrane specification tailored to the site: we define polymer type (HDPE, LLDPE, fPP), textured versus smooth surface, minimum thickness per GRI-GM18, and seam qualification through trial welds. For a recent pond lining job in the Port of Brisbane, we specified a 2.0 mm textured LLDPE because the subgrade had a D50 of 0.3 mm and the design head was 4 m. Before finalising the specification we often run a placa de carga to confirm the subgrade modulus, which directly affects the required geomembrane thickness under the stress of the overlying soil cover.
A 2.0 mm textured LLDPE geomembrane with 2.5% carbon black is our base specification for Brisbane ponds with a 4 m design head and soft subgrade.
Scope of work
Brisbane's urban expansion since the 1970s pushed development onto low-lying areas like the Kedron Brook floodplain and reclaimed land along the Brisbane River. These sites demand a solid geomembrane specification because the groundwater table sits within 1–2 m of the surface, and the soils are often soft clays with undrained shear strengths below 20 kPa. A standard 1.5 mm HDPE will not survive the construction traffic or the long-term settlement; we routinely specify a 2.0 mm or 2.5 mm textured sheet with a factory-applied coating for UV resistance. The specification also includes a minimum carbon black content of 2.0% per AS 1289 to handle Brisbane's subtropical UV index, which averages 11 in summer. When the subgrade is particularly soft we combine the geomembrane with a geotextile cushion layer and verify the interface friction angle through a direct shear test; that data feeds back into the stability analysis of the cover soil. A proper geomembrane specification also references the permeabilidad-campo of the underlying clay liner to ensure the composite system meets the local council's leakage rate of less than 20 L/ha/day.

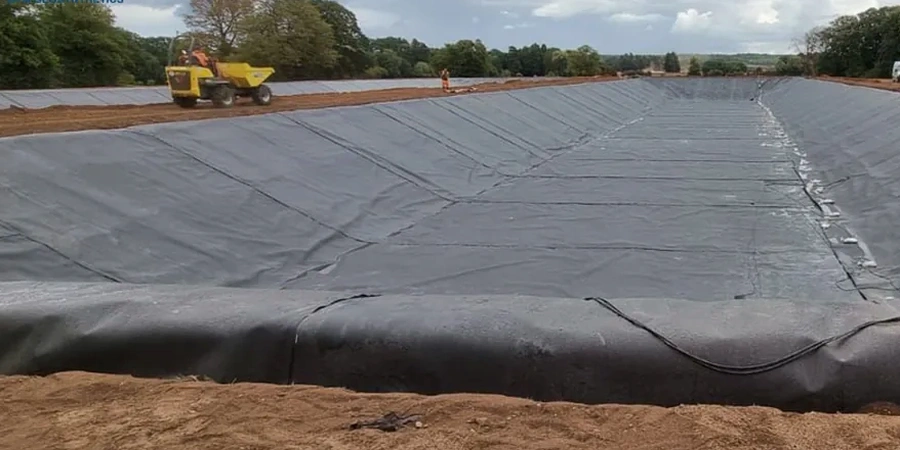

Technical reference image — Brisbane
Area-specific notes
The biggest mistake we see in Brisbane is specifying a geomembrane based on the cheapest roll price rather than the site's actual stress conditions. A 1.0 mm smooth HDPE might pass the budget check, but when the subgrade settles 50 mm under the waste load or the pond bank slumps, the geomembrane tears at the seam. That tear means a leak, and a leak in Brisbane's high groundwater table means contaminated water migrating into the aquifer. We have worked on a landfill cell near Willawong where a 1.5 mm smooth sheet punctured on a single 20 mm angular quartzite stone that was not removed during subgrade preparation. The repair cost three times the original liner installation. Our specification always includes a subgrade acceptance protocol: no stones larger than 10 mm, a smooth rolled surface, and a proof roll with a densidad-cono-arena check at every 50 m². That level of detail prevents the failure and keeps the project on schedule.
Determined by chemical exposure and UV class per GRI-GM18
Minimum thickness (mm)
1.5 mm for ponds ≤ 3 m head; 2.0 mm for > 3 m head or high puncture risk
Carbon black content (%)
≥ 2.0% per AS 1289 for Brisbane's UV index 11
Textured vs smooth
Textured (both sides) if slope angle > 10° or interface friction < 25°
Seam peel strength (kN/m)
≥ 24 kN/m per AS 1289.5.7.1 for 1.5 mm; ≥ 32 kN/m for 2.0 mm
Tensile break strength (kN/m)
≥ 40 kN/m in machine direction per AS 1289
Linked services
01
Polymer selection & material specification
We evaluate the leachate chemistry, UV exposure, and subgrade conditions to choose between HDPE, LLDPE, fPP, or PVC, and define the minimum thickness, texture, and additive package per GRI-GM18.
02
Seam qualification & trial welding
Our team oversees trial welds on-site using the actual rolls and welder settings, then tests peel and shear strength per AS 1289.5.7.1 to qualify the seam parameters before production welding begins.
03
Subgrade acceptance & proof rolling
We write the subgrade acceptance criteria including maximum stone size (10 mm), surface smoothness tolerance, and compaction level verified by density cone or nuclear gauge, then witness the proof roll.
04
Installation QA/QC & testing
We provide third-party inspection during deployment, seam welding, and patching, with daily reports of peel tests, air-pressure tests per AS 1289, and final leak-location surveys.
Standards used
GRI-GM18 (geomembrane thickness and property standards), AS 1289.5.7.1 (seam strength testing), AS/NZS 1170.2 (wind uplift on exposed liners), AS 1289 (carbon black content)
Frequently asked questions
What thickness of geomembrane is typical for Brisbane ponds?
For ponds with a design head up to 3 m we typically specify 1.5 mm HDPE or LLDPE. For heads above 3 m, or where the subgrade has angular gravel, we move to 2.0 mm or 2.5 mm textured sheet. The final thickness is confirmed by a stress analysis that includes the overlying soil cover and construction traffic.
Do I need a textured geomembrane for my Brisbane landfill cover?
Yes, if the slope of the cover system exceeds 10 degrees or if the interface friction angle between the geomembrane and the overlying soil is below 25 degrees. Texturing on both sides increases the interface shear strength and prevents sliding failures, especially on the steep side slopes common in Brisbane's landfill cells.
How much does a geomembrane specification service cost in Brisbane?
A full specification package including polymer selection, seam qualification, and subgrade acceptance criteria typically ranges between AU$840 and AU$2,640, depending on the number of liner types, the size of the site, and whether we need to run additional laboratory tests on the proposed rolls.
What tests are required to qualify a geomembrane seam?
We require peel and shear tests per AS 1289.5.7.1 on at least three trial welds using the actual production welder and roll. For 1.5 mm HDPE the minimum peel strength is 24 kN/m and shear strength is 32 kN/m. We also perform an air-pressure test per AS 1289 on each production weld to check for channel leaks.
Can I specify a geomembrane without a subgrade proof roll?
Technically yes, but we strongly advise against it. Brisbane's residual soils often contain quartzite gravels up to 50 mm that will puncture the geomembrane under the load of the cover soil. A proof roll with a heavy roller identifies soft spots and loose stones that must be removed before the liner goes down. Skipping this step is the most common cause of post-installation leaks.
