Brisbane’s geology is dominated by the Neranleigh‑Fernvale beds—a mix of greywacke, phyllite, and quartzite—often mantled by residual soils that lose strength rapidly when wet. In the inner suburbs we frequently find stiff, overconsolidated clays of the Kangaroo Point formation, while the western corridors present colluvium over weathered rock. These conditions make slope stability analysis a non‑negotiable step before any significant cut or fill. Our team has assessed dozens of cuttings along the Moggill Road corridor and the new rail alignments, where the interaction between bedding planes and excavation geometry controls the failure mechanism. We apply both circular and wedge failure models depending on the joint orientation, and we always calibrate shear strength parameters against lab test data from our NATA‑accredited laboratory. For sites with low‑plasticity residual soils we often pair the analysis with a veleta de campo to obtain undrained shear strength in situ, especially when sampling disturbance is a concern.
In Brisbane, a 24‑hour rainfall event can raise pore pressure 12 kPa—enough to drop the factor of safety below 1.0 in unsaturated colluvium.
Scope of work
Brisbane sits on a seismic hazard zone with a peak ground acceleration of 0.10 g for a 500‑year return period per AS/NZS 1170.4, which may seem low, but the real trigger for instability here is intense rainfall—some suburbs receive over 1,100 mm annually, with cyclonic events dumping 300 mm in 24 hours. We routinely see pore‑pressure rises of 8–15 kPa within hours of heavy rain, reducing effective stress and pushing slopes toward limit equilibrium. Our service includes transient seepage modelling using SEEP/W and SLOPE/W to simulate these events, and we apply the Morgenstern‑Price method for non‑circular slip surfaces in heterogeneous profiles. We also evaluate the impact of vegetation removal—root reinforcement in Brisbane’s native eucalypt forests can contribute up to 5 kPa of apparent cohesion, and losing that during site clearing often triggers delayed failures. For deeper slides we integrate data from instrumentacion-geotecnica like inclinometers and stand‑pipe piezometers to validate the model against real movement.

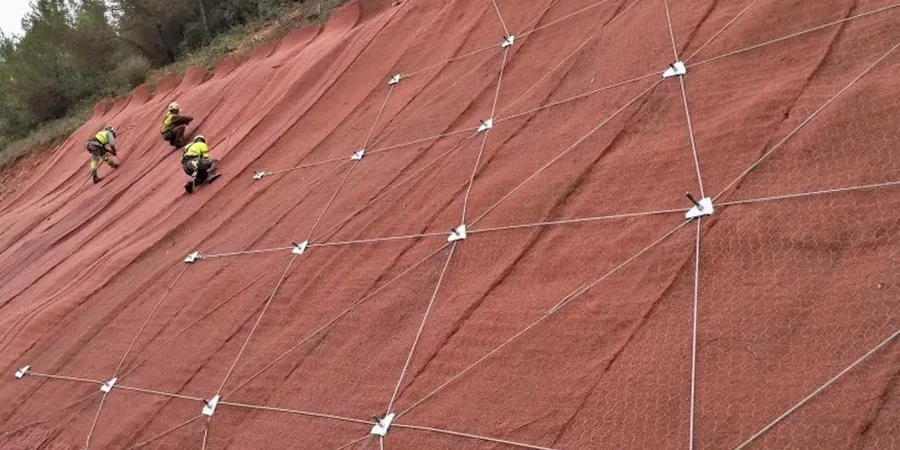

Technical reference image — Brisbane
Area-specific notes
The most common mistake we see on Brisbane sites is assuming that a slope that has stood for decades will remain stable after a cut is made at its toe. Builders often strip vegetation, excavate for a house pad, and trust the exposed soil—only to find tension cracks appear after the first summer storm. We have been called to three incidents in the last year where a 4‑m cut through phyllite colluvium failed because the contractor ignored the influence of a perched water table only 1.5 m deep. Without a proper slope stability analysis that accounts for both the bedding dip and the infiltration rate of Brisbane’s high‑clay subsoils, the factor of safety can drop from 1.6 to 0.9 in a single wet season. The result is not just a delay—it is a rectification cost that often exceeds the original earthworks budget by a factor of three.
Limit equilibrium (Bishop, Morgenstern‑Price, Spencer); finite element (Phase²)
Minimum factor of safety (static)
1.5 (AS 4678); 1.3 for temporary cuts
Seismic coefficient
0.10 g (AS/NZS 1170.4, 500‑yr return)
Shear strength input
c' from triaxial CU/CIU; phi' from direct shear; residual phi via ring shear
Pore‑pressure model
Ru coefficient or transient seepage (SEEP/W) for rainfall events
Critical slip surface search
Auto‑search with 500–1,000 trial surfaces; grid & tangent method
Linked services
01
2D Limit Equilibrium Analysis
For straightforward cut slopes and embankments up to 6 m high, we run Bishop and Morgenstern‑Price analyses on representative sections. Output includes factor of safety for static, seismic, and rapid drawdown conditions, plus sensitivity charts for c' and phi'. We deliver a report with critical slip surface plots and recommended remediation angles.
02
Advanced 3D & Seepage‑Coupled Modelling
For complex sites—irregular topography, variable stratigraphy, or deep fills—we build 3D models using Slide3 or FLAC3D. Coupled seepage analysis simulates transient pore pressure during design storms. Suitable for major subdivisions, road cuttings, and mine pit slopes. Includes probabilistic analysis (Monte Carlo) to quantify risk.
Standards used
AS 4678:2002 – Earth Retaining Structures, AS 1726:2017 – Geotechnical Site Investigations, AS/NZS 1170.4:2007 (Amdt 2) – Structural Design Actions (Earthquake), FHWA‑NHI‑05‑086 – Slope Stability Reference Manual (calibration)
Frequently asked questions
What factor of safety does AS 4678 require for permanent slopes in Brisbane?
AS 4678:2002 specifies a minimum factor of safety of 1.5 for permanent slopes under static conditions. For temporary cuts open less than two years, 1.3 is acceptable. When seismic loads are included, the minimum drops to 1.1. These values assume reliable shear strength parameters from site‑specific testing—not published correlations.
How does Brisbane's high rainfall affect slope stability analysis?
Brisbane receives over 1,100 mm of rain per year, often in short, intense storms. In our models we apply a transient seepage analysis using a 24‑hour design storm with a 5‑year recurrence interval. Pore pressures can rise by 10–15 kPa within hours, reducing effective stress and dropping the factor of safety by 0.3–0.5. We always run a 'wet scenario' case.
What soil parameters do you need from the site investigation?
We require effective cohesion (c') and effective friction angle (phi') from consolidated‑undrained triaxial tests on undisturbed samples, plus unit weight and moisture content. For residual soils on phyllite, we also need the residual friction angle from ring shear tests. A groundwater monitoring record of at least three months is ideal to define the seasonal high water table.
How much does a slope stability analysis cost for a typical Brisbane residential site?
For a standard residential cut slope up to 6 m high, the analysis costs between AU$2,050 and AU$3,500 including a report with cross‑sections and factor of safety calculations. Complex sites requiring 3D modelling or seepage analysis range from AU$4,200 to AU$6,020. These are guide prices; the final quote depends on site access, number of sections, and required turnaround.
