Brisbane's subtropical climate brings intense summer downpours that can saturate subgrades quickly, while its dry winters cause shrinkage in the region's reactive clays. This seasonal moisture swing makes soil stabilization for roads a necessary step before any pavement layer is placed. Without treatment, the active clay minerals expand and contract, leading to longitudinal cracking and uneven ride surfaces. In our experience, the most effective approach combines a thorough site investigation with targeted additive selection. For example, before mixing any binder, we often run an ensayo CBR on soaked samples to determine the soaked strength baseline, and we complement that with a granulometría to detect oversize particles that could compromise blending.
Without stabilization, Brisbane's reactive clays can swell up to 50 mm vertically during a wet season, causing pavement failure within the first three years.
Scope of work
Lo que más vemos en Brisbane is that the local lateritic soils, despite their high iron content, still require significant lime or cement dosages to reach the target plasticity index below 10. A typical sequence starts with a moisture-conditioning pass, then spreading the binder at a rate determined from laboratory mix designs. We use a stabiliser that penetrates 300 to 400 mm, followed by immediate compaction to at least 98 percent of standard Proctor density. The treated layer is then sealed with a light bituminous spray to prevent moisture loss before the base course goes on. For deep soft zones, we have used columnas de grava to reinforce the subgrade and reduce total settlement. This combination of chemical and mechanical methods ensures the stabilized platform distributes traffic loads without excessive deformation.

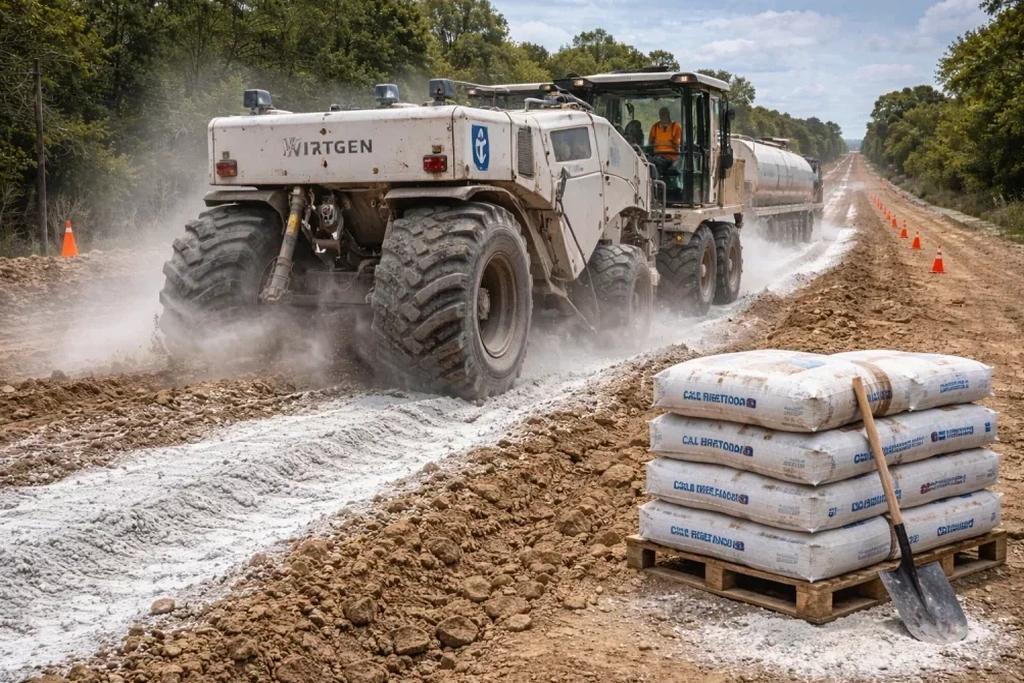

Technical reference image — Brisbane
Area-specific notes
Brisbane's geology is dominated by the Neranleigh-Fernvale beds — a mix of phyllite, greywacke, and slate that weathers into highly plastic clay. Below that, Tertiary alluvial deposits along the Brisbane River can contain soft, compressible silts and peats. When soil stabilization for roads is applied over these materials without first identifying deep soft layers, differential settlement can rupture the treated crust. We have seen cases where a 2 m thick soft clay pocket went undetected; after stabilization, the crust held but the underlying clay consolidated, creating a depression that required full-depth patching within 12 months. A careful drilling program with SPT or CPT soundings at 50 m intervals along the alignment is the only reliable way to avoid this.
For reactive clays and low-plasticity silts common in Brisbane's suburban corridors, we perform in-situ mixing using a road reclaimer. The process includes spreading the binder, pulverizing to 100% passing 26.5 mm, and compacting in a single pass. Quality control includes daily field density tests and Atterberg limits on blended samples.
02
Deep Soil Mixing (DSM) for Soft Alluvium
Where the subgrade contains soft alluvial clays more than 1 m deep — typical along creek crossings in Brisbane's western suburbs — we use deep soil mixing columns. A cementitious grout is injected through a rotating auger, creating 600–900 mm diameter columns that improve bearing capacity and reduce settlement. The design follows the Japanese DSM method adapted to AS 4678.
This service complements our laboratory testing work for a complete project analysis.
Standards used
AS 1726 (Geotechnical site investigations), AS 1289 (Soil compaction and classification), Austroads Guide to Pavement Technology Part 4D (Stabilised materials)
Frequently asked questions
How does the reactive clay in Brisbane affect soil stabilization for roads?
Brisbane's reactive clays, derived from the Neranleigh-Fernvale beds, can have plasticity indices above 35 and free swell values exceeding 30 percent. Without stabilization, these clays cause pavement heave and longitudinal cracking. Lime stabilization reduces the plasticity index to below 10, and cement stabilization provides additional strength gain. We always run Atterberg limits and swell tests on the untreated soil before recommending a binder type and dosage.
What is the typical cost range for soil stabilization for roads in Brisbane?
The cost for soil stabilization for roads in Brisbane generally falls between AU$1.320 and AU$4.510 per lane-kilometer, depending on treatment depth, binder type, and site access. Lime-treated sections tend to be at the lower end, while deep soil mixing or cement-stabilized layers requiring multiple passes sit at the higher end. A site-specific mix design and compaction testing program is always included in the scope.
How long after stabilization can the road surface be placed?
For cement-stabilized layers, a minimum curing period of 7 days is required before placing the asphalt or concrete wearing surface. Lime-stabilized materials often need 14 to 28 days to complete the pozzolanic reaction, depending on ambient temperature. We monitor moisture loss during curing and apply a light bituminous seal to prevent desiccation cracking. In Brisbane's summer, the curing time can be shortened by 2–3 days due to higher temperatures.
