A 15-storey residential tower in Fortitude Valley recently required micropile design to transfer loads through 8 metres of soft alluvial clay before reaching the Neranleigh-Fernvale Beds. The site's high groundwater table, sitting just 2 metres below surface, ruled out conventional pile installation methods. Micropiles offered a low-vibration alternative that would not disturb adjacent heritage structures. The design team specified 220 mm diameter piles with a single central bar, grouted under pressure, achieving a working load of 650 kN per pile. Before finalising the micropile design, the geotechnical investigation included a presurometer test to measure the lateral stiffness of the clay, which informed the group efficiency calculations for the pile cap.
In Brisbane's reactive clays, micropile design must account for negative skin friction as the ground swells and contracts seasonally.
Scope of work
Brisbane's geology presents a mix of residual granitic soils in the western suburbs and the reactive clays of the Coastal Lowlands in the east. When working in these clays, the micropile design must account for negative skin friction as the ground swells and contracts seasonally. The design process follows AS 1726 for site investigation and AS 4678 for earth retaining structures adjacent to the piles.
Structural capacity verification under AS 3600 for concrete and AS 4100 for steel cores
Load testing to 1.5 times the design load per AS 2159
Corrosion protection for piles in aggressive soil environments
Where the water table is high, the grouting mix uses a water-cement ratio of 0.45. A complementary groundwater infiltration study helps define the permeability zone before the final design is sealed.

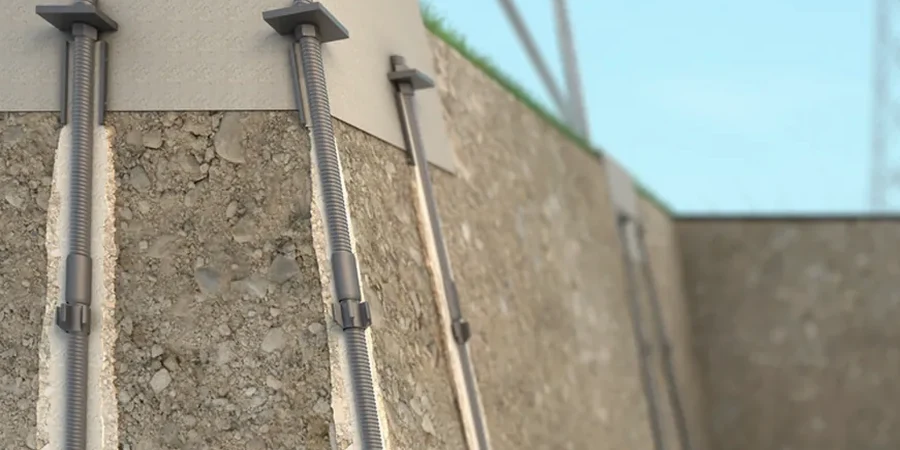

Technical reference image — Brisbane
Area-specific notes
In Hamilton and Newstead, the alluvial clays can reach plasticity indices above 50, causing significant settlement under sustained loading. Compare this with the more stable conditions in Eight Mile Plains, where the residual granodiorite provides end-bearing values exceeding 8 MPa. A micropile design that works in one suburb may fail in another. The risk is not just bearing capacity but also the long-term creep of the clay matrix around the grout column. Without proper load testing on site, you cannot validate the skin friction assumptions. The difference between a factored design and an unfactored one can mean the difference between a structure that settles 10 mm and one that settles 80 mm over five years.
Low-headroom solutions for basement construction in the Brisbane CBD and Spring Hill, where access is restricted and vibration must be minimised. Includes group analysis and settlement verification.
02
Micropile Design for Slope Stabilisation
Piles installed at angles to resist lateral movement on the steep terrain of the D'Aguilar Range foothills. The design incorporates both axial and shear capacity checks under AS 2159.
03
Micropile Design for Transport Infrastructure
Foundation support for bridge abutments and retaining walls along the Gateway Motorway corridor. Load testing to 2.0 times the design load is standard for these high-risk structures.
This service complements our laboratory testing work for a complete project analysis.
Standards used
AS 1726:2017 Geotechnical site investigations, AS 2159:2009 Piling — Design and installation, AS 3600:2018 Concrete structures, AS 4100:2020 Steel structures
Frequently asked questions
What is the typical cost range for a micropile design in Brisbane?
The cost for micropile design in Brisbane typically ranges between AU$2,340 and AU$7,190, depending on the number of piles, the complexity of the ground conditions, and whether load testing is required. This covers the structural calculations, group analysis, and a design report certified by a chartered geotechnical engineer.
How does the reactive clay in Brisbane affect micropile design?
Brisbane's reactive clays, particularly in the Ashgrove and Toowong areas, undergo significant volume changes with moisture variation. In micropile design, this translates to designing for negative skin friction during wet periods and tension forces during dry periods. The pile must be reinforced with a continuous steel core that can handle both compression and uplift, and the grout mix must resist sulphate attack common in these soils.
Can micropiles be installed near existing structures in Brisbane?
Yes, micropiles are ideal for Brisbane's tight urban sites because they can be installed with small equipment that fits through standard doorways and produce minimal vibration. The design must consider the proximity of existing footings and any underground services. A presurometer test is often recommended to measure the lateral stiffness of the soil and ensure the drilling does not cause differential settlement in adjacent buildings.
