Brisbane's subtropical climate, with annual rainfall exceeding 1,150 mm concentrated in summer storms, creates recurrent cycles of wetting and drying that significantly alter the mechanical behavior of the region's residual soils and alluvial deposits. The expansive clays of the Ashgrove and Toowong formations, combined with colluvial layers along the Brisbane River corridor, demand a precise assessment of subgrade bearing capacity before any pavement or earthwork design. Laboratory CBR testing under controlled moisture conditions provides the fundamental strength parameter required by Austroads design guides, allowing engineers to calibrate pavement thickness and evaluate the need for subgrade improvement in Brisbane's variable geological setting. Complementing this test with a granulometric analysis helps correlate particle size distribution with swell potential in fine-grained materials common across the city.
Brisbane's expansive clays can lose over 60% of their original CBR after saturation, making soaked laboratory testing essential for realistic pavement design.
Scope of work
A common oversight among contractors working in Brisbane is assuming that field CBR values from In-Situ alone are sufficient for design, without accounting for the drastic strength reduction that occurs when subgrades reach saturation after prolonged rainfall. Laboratory CBR testing under controlled density and moisture conditions eliminates this uncertainty by replicating the worst-case scenario prescribed by AS 1726 and AS 4678. The test compacts a soil sample at optimum moisture content, soaks it for four days to simulate field saturation, and measures the penetration resistance relative to a standard crushed rock. Parameters such as swelling pressure and expansion ratio are recorded simultaneously, providing a complete picture of the material's behavior. When dealing with the highly plastic clays of Brisbane's western suburbs, coupling the laboratory CBR with an Atterberg limits test clarifies whether the soil falls into the high-swell category requiring lime or cement stabilization before pavement construction.

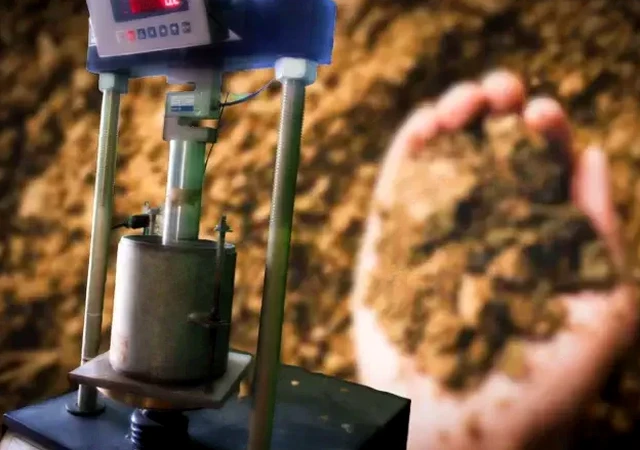

Technical reference image — Brisbane
Area-specific notes
AS 1726 specifies that subgrade materials with a soaked CBR below 5% require special consideration in pavement design, a threshold that many Brisbane sites—particularly those underlain by the Neranleigh-Fernvale Beds—routinely fail to meet. Ignoring this risk leads to premature pavement fatigue, rutting, and differential settlement that can appear within the first two years of service. The combination of high plasticity and seasonal moisture fluctuation in Brisbane's clay profiles means that unsoaked CBR values can overestimate long-term performance by a factor of two or more. Accredited laboratory testing under NATA-accredited procedures ensures that the design team receives data that reflects the actual in-service condition, not an optimistic dry-state snapshot. The financial consequence of under-designing a pavement in Brisbane's climate far exceeds the cost of a comprehensive CBR assessment upfront.
Conducted on samples compacted at OMC using Standard or Modified compactive effort, followed by 96-hour soaking to simulate worst-case saturation. The test reports CBR at 2.5 mm and 5.0 mm penetration, swell percentage, and density measurements. Suitable for pavement subgrade assessment, road base evaluation, and earthworks quality control in Brisbane's residential and infrastructure projects.
02
CBR with Swell Monitoring for Reactive Clays
Extended monitoring of vertical expansion during soaking, with readings at 24, 48, 72, and 96 hours to quantify the swell potential of expansive clays common in Brisbane's western suburbs. Results are correlated with Atterberg limits and linear shrinkage to classify the soil's reactivity per AS 2870. This service is critical for sites where pavement heave or floor slab movement is a concern.
Standards used
AS 1289.6.1.1 — Determination of the California Bearing Ratio of a soil (laboratory method), AS 1289.5.1.1 — Determination of the dry density / moisture content relation (Standard and Modified compaction), AS 4678-2002 — Earth retaining structures (referenced for subgrade bearing capacity), Austroads Guide to Pavement Technology Part 2: Pavement Structural Design (2017)
Frequently asked questions
What is the difference between soaked and unsoaked CBR, and which one should be used for Brisbane projects?
The soaked CBR test measures the bearing capacity after four days of immersion, simulating the moisture condition that occurs during Brisbane's wet season. The unsoaked test reflects the material's strength at its as-compacted moisture content. For pavement design in Brisbane, the soaked CBR is the conservative and recommended parameter, especially on sites with expansive clays or shallow water tables, because it accounts for the strength loss caused by moisture ingress over the pavement's service life.
How much does a laboratory CBR test cost in Brisbane?
The cost for a standard soaked CBR test with compaction and swell monitoring typically ranges between AU$210 and AU$300 per sample, depending on whether Standard or Modified compactive effort is required and whether additional swell readings are needed. For projects requiring multiple samples or urgent turnaround, volume discounts and express fees may apply. It is advisable to request a quote based on the specific scope and number of tests.
What sample size and preparation are required for a CBR test?
The test requires a disturbed bulk sample of approximately 25–30 kg of soil, collected from the subgrade layer at the depth of interest. The sample must be sealed in moisture-proof bags to preserve its natural water content. In the laboratory, the material is air-dried, sieved to remove particles larger than 19 mm, and compacted in a 152 mm diameter mould at the target moisture and density. For Brisbane's highly plastic clays, it is essential to provide enough material to perform repeat tests if the swell exceeds expected limits.
Can CBR results be correlated with other soil strength tests for pavement design?
Yes, empirical correlations exist between CBR and resilient modulus, a key parameter in mechanistic pavement design methods. The Austroads Guide provides relationships such as Mr = 10 × CBR (MPa) for fine-grained soils, though site-specific verification through repeated load triaxial testing is recommended for critical projects. In Brisbane, where subgrade stiffness varies significantly with moisture content, relying solely on CBR without considering the soil's compaction curve and swell behavior can lead to under-designed pavements.
