Brisbane's geology is dominated by Quaternary alluvial and estuarine deposits, particularly in the low-lying floodplains of the Brisbane River and its tributaries. These soft clays and silts, often with undrained shear strengths below 25 kPa, demand Improvement if you want to build anything beyond a single-storey house. We design stone columns — also called vibro-replacement columns — that densify and reinforce these weak layers, reducing total and differential settlements to tolerable levels for pavements, embankments, and light structures. Before specifying the stone column pattern, our team runs a site investigation that includes the ensayo SPT to profile the soil stratigraphy and confirm the presence of compressible horizons.
In Brisbane's alluvial clays, stone columns can reduce total settlements from over 300 mm to less than 50 mm for typical embankment loads.
Scope of work
The difference between building in the Brisbane CBD, where you hit competent Neranleigh-Fernvale Beds at moderate depth, and a site in Hemmant or Eagle Farm can be night and day. In those eastern suburbs, we routinely encounter 15 to 25 metres of soft to firm alluvial clay overlying sandstone. For these conditions, we design stone columns with a replacement ratio typically between 15% and 35%, using crushed rock aggregate with a maximum particle size of 50 mm. The design process includes a settlement analysis using the Priebe method adapted to AS 4678:2002, and we often cross-check with a placa de carga on the constructed columns to verify the modulus of subgrade reaction. Each design is also checked for internal stability and bulging of the column into the soft matrix.

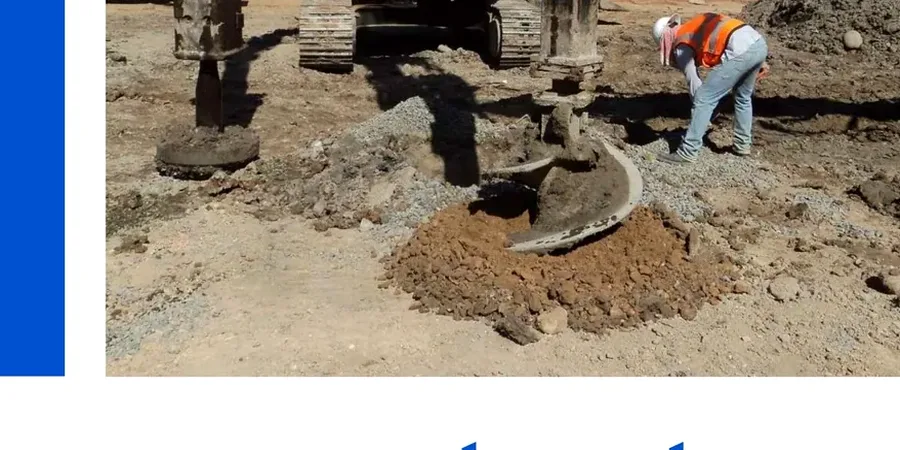

Technical reference image — Brisbane
Area-specific notes
A common mistake we see in Brisbane is contractors specifying stone columns based on a standard template without verifying the local groundwater conditions. The water table here sits less than 2 metres below surface in many riverfront suburbs, and if you use dry top-feed methods you risk column necking and bulging failures. Another error is ignoring the lateral confinement of the surrounding soil: in very soft clays (Su < 15 kPa), the column can expand laterally rather than transferring load to depth. We always check the limiting shear stress criterion and, if needed, recommend a column blanket or geotextile wrap at the base. The cost of rework after a poorly designed column field is far higher than spending the extra day on site-specific design.
We perform settlement calculations using Priebe, Pulko, and Balaam methods, and produce column layout plans with replacement ratios optimised for your specific load and soil conditions. All designs are checked against AS 4678 and the FHWA manual, and we provide a detailed construction specification including aggregate grading, installation method (dry top-feed or wet bottom-feed), and quality control testing frequency.
02
Construction Verification & Load Testing
After installation, we carry out plate load tests on selected stone columns to verify the design modulus of subgrade reaction and confirm that the column is not bulging into the soft clay. We also monitor column diameter using down-the-hole camera inspections and correlate with the energy per metre recorded during installation. A final settlement monitoring plan is provided for the first 12 months of fill placement.
Standards used
AS 4678:2002 Earth-retaining structures (applicable for column-supported embankments), Eurocode 7 (EN 1997-1:2004) – Section 9: Improvement by columns, AS 1289.6.3.1 (Standard Penetration Test for soil profiling), FHWA Improvement Manual – Chapter 6: Stone Columns
Frequently asked questions
What is the maximum depth that stone columns can be installed in Brisbane's soft soils?
In practice, vibro-replacement stone columns can reach depths of up to 25 metres in Brisbane's alluvial deposits, limited by the reach of the vibro probe and the ability to maintain a continuous column of aggregate. For deeper soft layers, we often combine stone columns with other techniques such as prefabricated vertical drains or consider alternative Improvement methods.
How much does stone column design cost for a typical Brisbane site?
The cost for a stone column design package, including site-specific settlement analysis, column layout, and construction specification, typically ranges between AU$2.560 and AU$8.090 depending on the number of load cases, the complexity of the soil profile, and whether you require a full FEM verification. This does not include site investigation or installation costs.
Can stone columns be used for building foundations or only for embankments?
Stone columns are most effective for reducing settlements under embankments, tank foundations, and lightly loaded structures where the applied pressure does not exceed the yield stress of the improved ground. For high-rise buildings in Brisbane, we typically recommend stone columns as a settlement-reduction measure in combination with a raft foundation, but not as a replacement for deep foundations like driven piles when column loads exceed 500 kN per column.
