In Brisbane, where much of the urban footprint sits on Quaternary alluvium and highly reactive clays from the Neranleigh-Fernvale formation, differential settlement analysis is not optional — it is a requirement under AS 1726 for any structure with variable soil profiles. The city’s subtropical rainfall (averaging 1,150 mm annually) drives significant moisture changes in these clays, triggering cyclic swelling and shrinkage. Our team combines in-situ plate load testing with advanced consolidation modelling to predict differential movement before a single foundation element is poured. For deeper profiles we integrate ensayo triaxial data to capture drained shear parameters, and when soft estuarine layers appear near the river we cross-check with suelos organicos classification to refine compressibility estimates.
Fifteen millimetres of angular distortion can crack a slab. We quantify that risk before the first rebar is placed.
Scope of work
A common mistake we see on Brisbane projects is treating total settlement as the only design criterion. A building may settle 40 mm uniformly and perform fine, but 15 mm of differential movement across a column grid can crack slabs, jam doors, and rupture utility connections. Our analysis isolates angular distortion and compares it against serviceability limits from AS 4678. We quantify this through a staged approach:
Initial site investigation with boreholes and undisturbed sampling
Oedometer tests to determine compression index (Cc) and recompression index (Cr)
Numerical modelling using finite element software to simulate load sequences
To capture post-construction creep in Brisbane’s peat lenses we also incorporate precarga data from nearby sites, and for pavements subject to heavy traffic loads we run pavimento flexible deflection analysis alongside the settlement model.

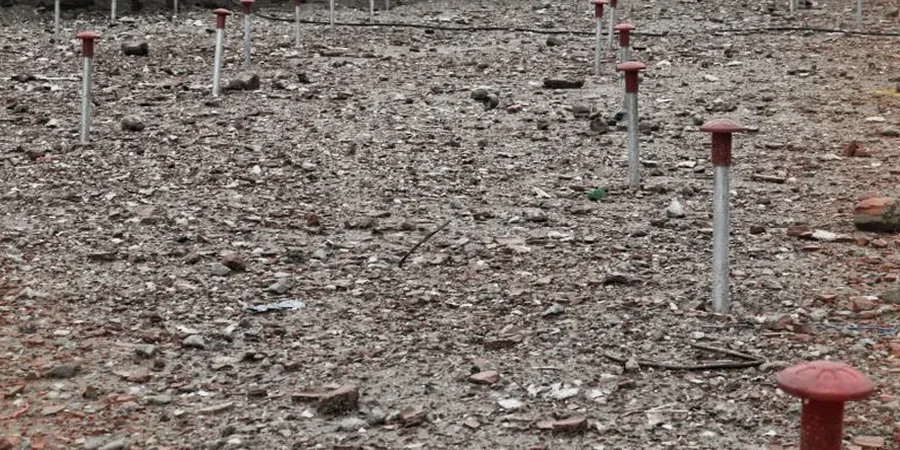

Technical reference image — Brisbane
Area-specific notes
Brisbane’s population passed 2.6 million in 2024, and with densification comes deeper excavations and heavier loads. The 2022 Brisbane River flood deposited up to 300 mm of soft silt in low-lying suburbs, creating hidden compressible layers that accelerate differential movement under new structures. If your foundation design assumes uniform soil behaviour across a block, you are carrying a risk that can exceed the cost of the entire geotechnical program. A single reactive clay pocket beneath one corner of a raft slab can produce enough heave to lift a load-bearing wall. That is why we treat every differential settlement analysis in Brisbane as a site-specific diagnostic — never a generic checklist.
Oedometer tests on undisturbed samples to determine Cc, Cr, cv, and pre-consolidation pressure. We follow AS 1289.6.6.1 and report settlement magnitude versus time curves specific to Brisbane clay profiles.
02
Finite Element Settlement Modelling
2D and 3D numerical analysis using Plaxis 2D and MIDAS GTS NX. We simulate staged construction, pore pressure dissipation, and differential movement under pad, strip, or raft foundations.
03
Field Verification with Plate Load Tests
In-situ plate load tests (PLT) per AS 1726 to measure immediate settlement modulus. Results feed directly into the settlement model to calibrate design assumptions against actual ground response.
Standards used
AS 1726:2017 Geotechnical site investigations, AS 4678:2002 Earth retaining structures (serviceability limits), AS/NZS 1170.0:2002 Structural design actions (settlement criteria), AS 1289.6.6.1/D2435M-11 Standard test methods for one-dimensional consolidation
Frequently asked questions
What is the difference between total settlement and differential settlement?
Total settlement is the vertical displacement of a foundation element as a whole, while differential settlement is the relative movement between two points on the same structure. In Brisbane, differences as small as 15 mm can cause serviceability issues in brick veneer or tilt-slab panels.
How much does a differential settlement analysis cost in Brisbane?
For a standard residential or low-rise commercial project, the cost ranges between AU$1,150 and AU$3,200 depending on borehole depth, number of oedometer tests, and whether numerical modelling is required. We provide a fixed quote after reviewing the site conditions.
Which Brisbane soil types cause the most differential movement?
The most problematic soils are the stiff, highly reactive clays of the Ashgrove and Toowong formations, and the soft alluvial silts along the Brisbane River corridor. These layers have variable compressibility and moisture sensitivity, which can produce non-uniform settlement under identical loads.
Can differential settlement be fixed after construction?
Yes, but it is far more expensive than predicting it upfront. Remedial methods include underpinning with micropiles, slab jacking, or installing a drainage system to stabilise moisture content. Our analysis aims to avoid these interventions by identifying risk zones before the foundation is designed.
