While the inner-city areas of Brisbane like Spring Hill and Fortitude Valley sit on competent residual soils and rock, the suburbs along the Brisbane River—such as West End, New Farm, and Bulimba—are underlain by deep Quaternary alluvial clays and silts with shear strengths often dropping below 20 kPa. That contrast is exactly where the field vane shear test becomes indispensable. We deploy the VST to measure the in-situ undrained shear strength of these soft deposits directly, without sampling disturbance. Before designing foundations in these riverine corridors, we often combine the vane results with a plate load test to calibrate bearing capacity, and with piezocone CPTu when pore-pressure dissipation data is needed for consolidation settlements. The test gives us a reliable profile of undrained strength versus depth, critical for embankments and excavations.
A vane shear test on Brisbane’s alluvial clays can reveal undrained strengths below 15 kPa—values that dictate deep foundation or Improvement design.
Scope of work
Brisbane’s subtropical climate drives deep weathering profiles and high moisture content in the low-lying floodplains, conditions that can reduce effective stress rapidly during wet seasons. The field vane shear test is executed by pushing a four-bladed vane into undisturbed soil at the base of a borehole, rotating it at a standard rate of 6° to 12° per minute, and recording the peak torque. We use calibrated vane rods and measure residual strength after a set number of rotations. All equipment is traceable to NATA-certified calibration standards. The vane is advanced with a hydraulic push system to minimize remolding of the soft clay before the test begins. For very sensitive clays, we also integrate CPT friction ratio profiles to cross-check the vane-derived sensitivity index. The procedure follows AS 1726-2017 clause 4.4.2 and AS 1289.6.2.1. Key parameters we obtain are:

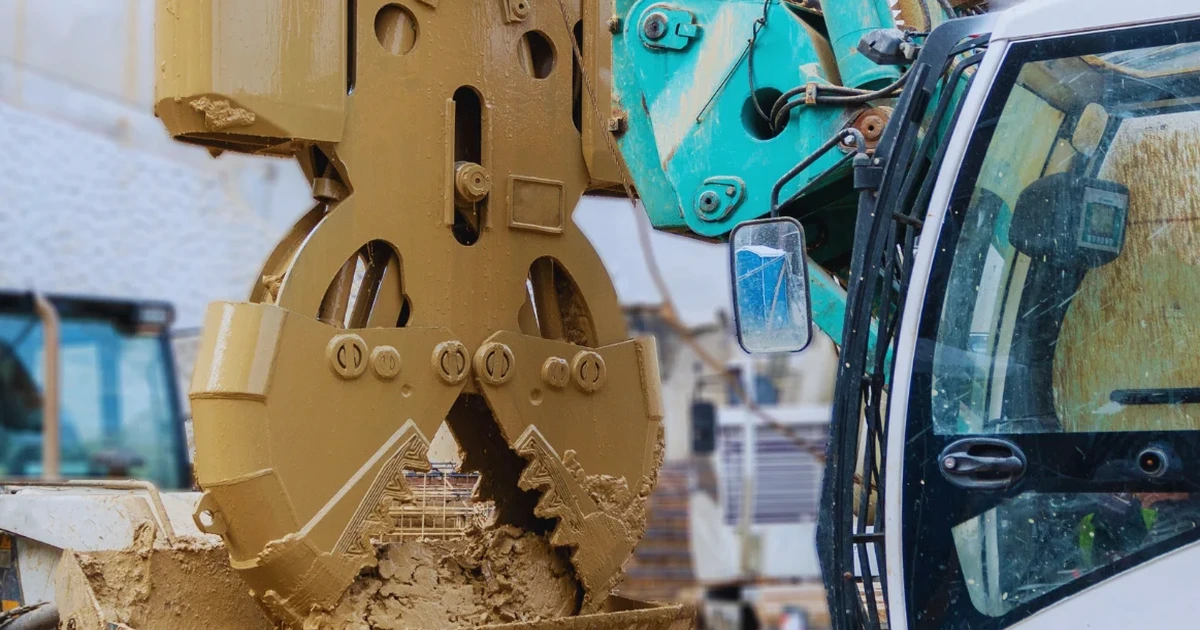

Technical reference image — Brisbane
Area-specific notes
A common mistake we see among contractors in Brisbane is assuming that laboratory triaxial tests on intact samples will capture the true undrained strength of soft clays. Sample disturbance—especially in sensitive alluvial deposits from the river reaches—can reduce measured strength by 30% or more. Without a field vane shear test at the actual depth of interest, the geotechnical design may overestimate available shear resistance. This leads to unrealistically high bearing capacities for shallow foundations or, worse, under-designed retaining walls and temporary excavations that suffer basal heave or base failure during wet-season loading.
We deploy a hydraulic vane shear rig with digital torque transducer and depth encoder. Tests are performed at 1.0 m intervals or as specified in the borehole log. Raw torque data is recorded in real time and processed to yield su, sur, and sensitivity profiles for each test depth.
02
Integrated geotechnical interpretation
Our senior engineers correlate VST results with laboratory index properties (water content, Atterberg limits) and CPTu data to classify clay sensitivity, stress history, and potential strain-softening behaviour. The final report includes design recommendations for shallow and deep foundations in soft ground.
03
NATA-accredited laboratory support
All vane calibration records, torque transducer certificates, and field procedures are documented under our NATA-accredited quality system (ISO 17025). We provide full traceability for independent review by certifiers and structural engineers.
Standards used
AS 1726-2017 (Geotechnical site investigations – Vane shear test procedures), AS 1289.6.2.1 (Standard Test Method for Field Vane Shear Test in Saturated Fine-Grained Soils), AS 4678-2002 (Earth-retaining structures – design using undrained strengths)
Frequently asked questions
What is the typical cost of a field vane shear test in Brisbane?
The standard cost for a field vane shear test in Brisbane ranges from AU$1,110 to AU$2,580 per site visit, depending on the number of test depths (typically 4-8 per borehole), access conditions, and whether residual strength testing is required. This includes mobilisation, execution, data processing, and a certified report. Volume discounts apply for multiple boreholes on the same project.
How deep can the vane shear test be performed in Brisbane's alluvial soils?
The vane shear test can be performed at depths up to 20 metres below the base of a pre-drilled borehole, provided the rod string remains straight and the clays are soft enough to allow vane penetration. In Brisbane's river clay deposits, we routinely test to 25-35 metres below ground surface when using continuous-flight auger pre-drilling to reach the target horizon.
What is the difference between peak and residual undrained shear strength, and why does it matter?
Peak undrained shear strength (su) is the maximum resistance mobilised by the intact clay structure during initial rotation. Residual strength (sur) is the lower stable value measured after several rotations, when the clay fabric is fully remolded. The ratio between them (sensitivity) tells you how much strength the soil loses if disturbed. In Brisbane's soft alluvial clays, sensitivity values above 4 indicate high risk of strength loss during excavation or pile driving.
How does the field vane shear test compare to the unconfined compression test for soft clays?
The field vane measures undrained strength in-situ, avoiding the sample disturbance that often plagues thin-walled tube samples in Brisbane's sensitive clays. The unconfined compression test (UCS) on a recovered sample can underestimate su by 20-40% due to stress relief and handling damage. For design of river-crossing structures or deep excavations, we consider the vane test more reliable and often use it as the primary reference for undrained strength profiles.
