Brisbane sits on a complex mix of Neranleigh-Fernvale beds, Brisbane Tuff, and Quaternary alluvium. The city's 2.6 million residents rely on infrastructure built over these highly variable formations. Grouting design here must account for the fractured rock mass beneath the CBD and the loose sands along the river corridor. A single grout mix does not work across these zones. The team evaluates void ratios, fracture aperture, and groundwater flow before selecting a suspension or solution-based grout. This approach prevents costly rework and ensures long-term stability. Before mobilising equipment, a thorough site investigation using ensayo triaxial helps define the soil's shear strength parameters needed for grout pressure limits.
Grouting design in Brisbane must adapt to fissured rock, shallow water tables, and reactive clays — one mix never fits all.
Scope of work
The geological profile under Brisbane often includes highly weathered phyllite and schist with open joints. Groundwater is typically shallow, sitting 2 to 5 metres below grade in many suburban areas. Grouting design must address both permeability reduction and soil strengthening. The method varies: for alluvial sands we use permeation grouting with low-viscosity microfine cements; for rock fissures we apply high-mobility cementitious grouts under controlled pressure. Laboratory tests guide the mix design, including viscosity, bleed, and unconfined compressive strength trials. All work follows AS 1726 and the Australian Drilling Industry Association guidelines. A complementary estudio de mecánica de suelos confirms the baseline conditions before any injection program begins.

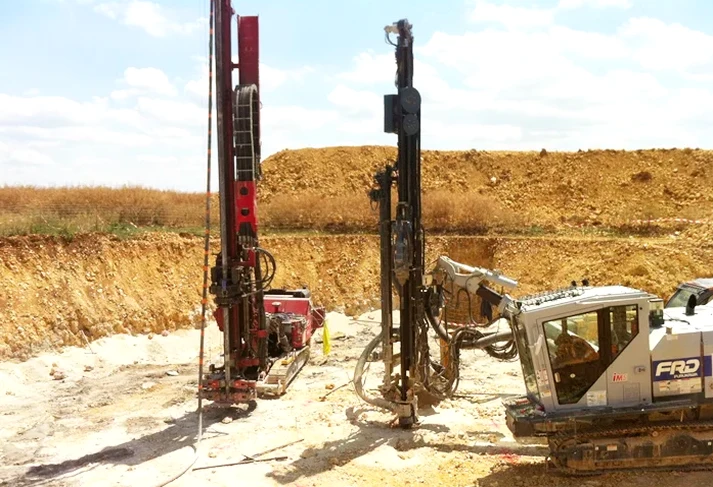

Technical reference image — Brisbane
Area-specific notes
A common mistake on Brisbane projects is assuming a standard cement grout will seal all voids. The fractured phyllite beneath Fortitude Valley can swallow slurry without forming a proper seal. Meanwhile, the alluvial sands near the Brisbane River may not accept grout at all if the grain size is too fine. Without tailored grouting design, contractors face water ingress during excavation, settlement of adjacent structures, and budget overruns. The team reviews borehole logs and packer test data before specifying injection parameters. This reduces the risk of heave, hydrofracture, or incomplete filling of voids.
Microfine cement / Chemical solution / High-mobility cement
Target Permeability
≤ 1×10⁻⁷ m/s after treatment
Maximum Injection Pressure
0.5–2.0 MPa depending on overburden
Viscosity Range
5–30 seconds (Marsh cone)
Water:Cement Ratio
0.6:1 to 1.0:1 by weight
Linked services
01
Permeation Grouting Design
Low-pressure injection of microfine cement or chemical grouts into alluvial sands and silts. Increases soil cohesion and reduces permeability without displacing the matrix.
02
Fissure Grouting for Rock Mass
High-mobility cementitious grouts injected into open joints and fractures in Brisbane Tuff and phyllite. Designed to reduce water inflow and improve rock mass modulus.
03
Compaction Grouting Design
Low-slump, high-viscosity grout injected under pressure to densify loose fills and collapsible soils. Controls settlement risks in reclaimed areas like Eagle Farm.
04
Chemical Grouting for Groundwater Control
Acrylate and polyurethane resin grouts for rapid water cut-off in wet excavations. Effective in variable groundwater conditions beneath the Brisbane River corridor.
Standards used
AS 1726:2017 Geotechnical site investigations, AS 4678:2002 Earth-retaining structures, Australian Drilling Industry Association – Grouting Code of Practice, AS 1289.6.7.3 – Standard Practice for Design and Installation of Groundwater Monitoring Wells
Frequently asked questions
What is the typical cost range for grouting design in Brisbane?
The cost for grouting design services in Brisbane typically ranges between AU$1,960 and AU$6,630, depending on site complexity, number of injection zones, and required laboratory testing. Final price is confirmed after initial site review.
How long does a grouting design study take?
A standard grouting design study for a single building site takes 2 to 4 weeks. This includes site data review, mix design trials, and pressure specifications. Complex multi-zone projects may require up to 6 weeks.
Can grouting design fix settlement issues in existing buildings?
Yes, compaction grouting and chemical grouting are used to lift or stabilise settled structures. The design must account for the existing foundation type, soil profile, and load conditions. A prior investigation is essential to avoid damaging the structure.
What grout type is best for Brisbane's reactive clay soils?
Reactive clays (class H or E) typically require chemical grouts with low viscosity and controlled setting time. Cementitious grouts may crack as the clay swells and shrinks. The design team selects a flexible grout that accommodates moisture-driven volume changes.
