Brisbane sits on a complex mix of clay-rich soils, including the notorious Brisbane Tuff and deep alluvial deposits along the river corridor. These materials shrink and swell significantly with moisture changes, so a soil mechanics study is essential before any foundation work. The team starts by drilling boreholes and extracting undisturbed samples for index testing. We then run Atterberg limits and particle size distribution to classify the soil. This data feeds directly into the bearing capacity analysis. For sites near the Brisbane River, we also check for groundwater levels, which can shift after heavy rain. Combining these results with a [placa de carga](placa-de-carga) test gives us a reliable modulus of subgrade reaction for slab design. Every step follows AS 1726, ensuring our work holds up to local council scrutiny.
Brisbane reactive clays can swell up to 50 mm annually; a proper soil mechanics study prevents slab heave and structural cracking.
Scope of work
Around 2.4 million people live in the Greater Brisbane region, and many new developments sit on former floodplains or steep hillsides. A soil mechanics study in Brisbane must address specific local challenges:
Highly reactive clays (CH) with plasticity indices above 40%
Collapsible sands in the western suburbs like Kenmore and Chapel Hill
Fill materials from historical quarry operations near Mount Coot-tha
The laboratory runs consolidation tests and direct shear tests on undisturbed samples to predict settlement and slope stability. We also perform chemical analysis for sulfate attack risk on concrete, especially in areas with old landfill. For deep foundations, we correlate SPT blow counts with shaft friction using local correlations. This data supports the design of [pilotes de fricción y punta](pilotes-friccion-punta) when bearing strata lie deeper than 10 metres. The entire process is documented in a geotechnical report that satisfies both the engineer and the certifier.

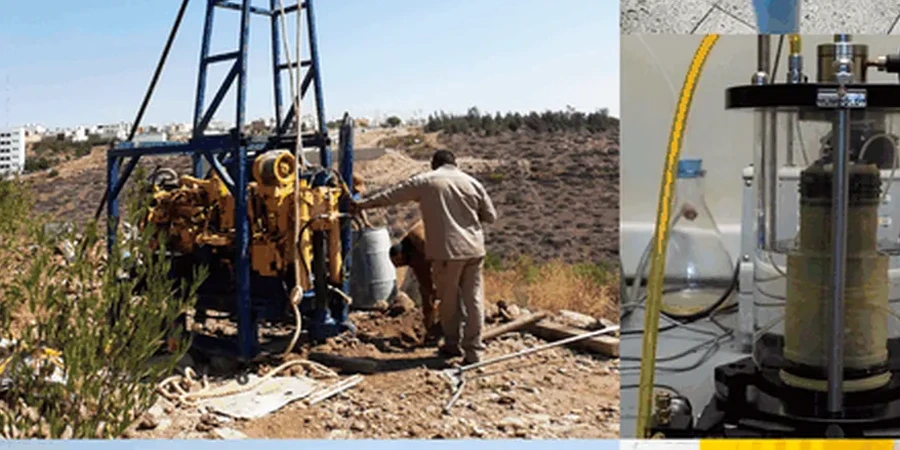

Technical reference image — Brisbane
Area-specific notes
Summer rainfall in Brisbane averages around 450 mm from December to February. This saturates the reactive clays, causing them to swell and lift lightly loaded slabs. On the flip side, prolonged dry periods in winter shrink the same soils, leading to differential settlement. A soil mechanics study in Brisbane must account for this cyclic movement. We use oedometer tests under wetting cycles to estimate the heave potential. For sites on sloping terrain, we also run stability analyses to check for shallow slip surfaces. Ignoring these seasonal effects can result in cracked walls, jammed doors, and costly repairs. The lab report includes a reactivity classification (AS 2870) that directly guides the footing design.
Atterberg limits, particle size distribution, moisture content, and linear shrinkage. These define soil reactivity and group classification according to AS 1726.
02
Strength & Consolidation Tests
Triaxial (UU, CU, CD) and oedometer tests to measure shear strength and compressibility. Essential for settlement predictions and bearing capacity analysis.
03
Chemical Analysis
Sulfate content, pH, and chloride tests to assess concrete aggressivity. Critical for sites with historical fill or near tidal zones along the Brisbane River.
04
In-Situ
SPT, DCP, and plate load tests performed on-site to correlate with lab results. We provide real-time data for quick design decisions.
Standards used
AS 1726:2017 – Geotechnical Site Investigations, AS 2870:2011 – Residential Slabs and Footings, AS 1289.3.1.1 – Atterberg Limits, AS 1289.6.3.1 – Standard Penetration Test (SPT)
Frequently asked questions
What does a soil mechanics study in Brisbane typically include?
It includes site drilling, sampling, laboratory testing (Atterberg limits, particle size, shear strength, consolidation), and a geotechnical report with recommendations for foundations, slabs, and earthworks. The scope depends on the site class and project type.
How much does a soil mechanics study cost in Brisbane?
For a standard residential lot, the cost ranges between AU$5.520 and AU$8.240, including drilling, lab testing, and a certified report. Larger commercial sites or projects requiring deep boreholes may cost more depending on the number of test pits and laboratory analyses.
Why are Brisbane soils considered reactive?
Many suburbs in Brisbane have clay soils with high plasticity (PI over 40%). These clays swell when wet and shrink when dry, causing movement in lightly loaded structures. A soil mechanics study classifies this reactivity per AS 2870 to guide footing design.
How long does it take to get a soil mechanics study report?
Typically 7 to 14 business days from the date of drilling. Rush orders can be arranged for an additional fee. The timeline depends on the number of samples and the complexity of the testing (e.g., consolidation tests take longer than index tests).
Do I need a soil mechanics study for a small extension or granny flat in Brisbane?
Yes, most councils in the Brisbane region require a geotechnical report for any new structure, even small ones. The study ensures the foundation design matches the site conditions and reduces the risk of future cracking or settlement.
